If you have an entrance door and/or vehicle gate project that requires the ability to control and track who accesses your facility, R&S has the technical expertise and the system to meet your requirements. Email us today to meet with one of our access control experts.
Doorking Model 1812
The model 1812 is a unique telephone intercom system that allows homeowners to use their telephone as an intercom to speak to a guest at a front door or gate without the necessity to pay for an additional telephone line at their home. With its “intercom mode” programming feature, the 1812 can also be connected to a PBX or KSU type system, making it ideal for small businesses to control access through a single door or gate. Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone. The 1812 is available in both surface and flush mount designs and includes the DKS auto-programming software for Windows, allowing homeowners to program the system right from their home computer.
The 1812 is available in three distinct styles: Surface mount, Flush mount and Wall mount.
ADVANCED FEATURES
- PC Programmable.
- Distinctive double ring identifies visitor calls from regular calls.
- Call waiting.
- Call forwarding.
- 3 preprogrammed call out telephone numbers.
- “Do Not Disturb” time zone.
- Hold open time zones.
- Built-in time clock.
- Entry code time zones.
- “Flash” entry code.
- LED lighted keypad.
- 2 relays for door/gate control.
Doorking Model 1812 Telephone Intercom System Product Spec Sheet
Doorking Model 1835
The Model 1835 is an ideal telephone entry system suited for apartment and gated community applications as well as office buildings and industrial sites that have a separate access control system, or require telephone entry only. The single-line LCD display features big 1/2-inch characters for easy viewing and your personalized message scrolls across the screen from right to left when the system is not in use. Our unique “One Touch” CALL button makes this system one of the easiest to use on the market today! The built-in electronic directory, easy to use Remote Account Manager programming software, card reader interface and expandability options make this unit an ideal choice for those applications with a large number of system users and entry locations. Up to 16 card readers can be interfaced with the 1835 to provide access control. Additionally, our elevator control module restricts which floors a guest or system users have access to, making it an ideal system for high rise buildings. For additional security, the 1835 allows you to monitor activity AS IT HAPPENS on your computer display (requires RS-232 connection), and with our anti-pass back memory, you can enable a TRUE anti-pass back system in one of three different configurations; passive, active and trap.

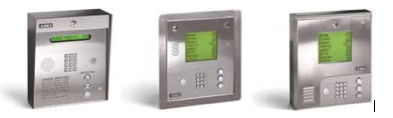

The 1835 is available in three distinct styles:
- Surface mount
- Flush mount
- Wall mount
ADVANCED FEATURES
- PC Programmable via modem or RS-232. Remote Account Manager and Transaction Analysis software included.
- Large easy to use A and Z scroll buttons.
- One Touch “CALL” button.
- Built-in single-line LCD directory display.
- Programmable directory codes (1-4 digits).
- 10 and 11-digit dialing capability.
- Interfaces with 2 card readers – expandable to 16 with tracker expansion board(s)
- Live transactions (requires RS-232 connection).
- Anti-pass back.
- 8000 event transaction buffer.
- 31 Security (permission) levels.
- Database import/export capability.
- LED Lighted keypad.
- Built-in clock/calendar.
- Holiday schedule.
- Hold open time zones.
- Entry code time zones.
- Built-in postal lock provision.
Contact us for more information about this and other DoorKing systems.
Doorking Model 1835 Product Information Sheet
Linear Telephone Entry Systems:
R&S also services and installs Telephone Entry systems by Linear. Linear is one of the leading manufacturer’s of access control systems.
Click On One Of The Following To View Detailed Brochure:
Digital Keypad Systems
DoorKing:
Door or gate access using four digit entry codes
- Model 1503 low cost, will store (2) four digit codes
- Model 1504 can add a speaker and push button for intercom
- Model 1506 can store up to 1000 codes, a slave keypad may be added, allows control to two separate access points
Radio Frequency Control
- High security remote transmitter gate control
- 1 to 1 million codes available
- Model 8057 can store up to 16,000 individual transmitter codes. Ideal stand alone
- Model 8059 provides format to interface with an access control system

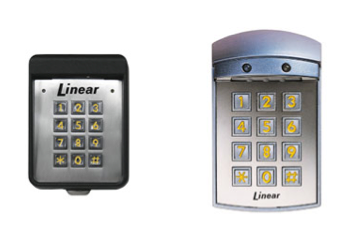

Linear:
- Model AK-11, exterior surface or gooseneck mount system holds up to 480 entry codes
- Model AK-2, interior flush mount system holds up to 480 entry codes
- AK-21W, weather-resistant flush mount system holds up to 480 entry codes
- AK-31, low cost interior flush mount system holds up to 480 entry codes
- AKR-1, exterior surface or gooseneck mount system holds up to 480 entry codes and 480 block coded transmitters that work with it’s built in receiver
DOORKING BARRIER GATES
MODEL 1601 AND 1602 ADVANCED FEATURES
- Magnetic limit control.
- Ports for plug-in loop detectors.
- Automatic sequencing inputs for use with slide and swing gate operators.
- Up input memory buffer.
- Down memory option.
- Multiple up commands.
- Two convenience outlets.
- 360° gear box rotation.
- Gate tracker reporting output.
- Programming switches.
- Built-in power On/Off switch.
- Left or right hand mount.
DoorKing 1601 Barrier Gate
The 1601 operator is designed for single lane (14 ft. max) vehicular traffic control in high traffic commercial and industrial applications. The 1601 operator is designed so that it can be mounted on either the left or right hand side of the roadway. The operator can be equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.
SPECIFICATIONS
- 1/2 HP continuous-duty motor.
- 115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
- 40:1 gear-box running in a continuous oil bath.
- Arm rotates 90° in approximately 1.5 seconds.
- Class II, III and IV applications.
- Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional secondary entrapment prevention devices may need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
- Dimensions (operator only): 15.25″W x 39.5″H x 14.75″D.
DoorKing 1602 Barrier Gate
SPECIFICATIONS
- 1 HP continuous-duty motor.
- 60:1 gear-box running in a continuous oil bath.
- 115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
- Arm rotates 90° in approximately 5.5 seconds.
- Class III and IV applications.
- Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional secondary entrapment prevention devices may need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
- Dimensions (operator only): 15.25″W x 39.75″H x 15.75″D.
DoorKing Traffic Control Spikes
SPECIFICATIONS
Flush Mount Traffic Spikes
- Individual spring loaded spikes.
- Stainless steel springs.
- Weight spikes (no springs) version available.
- Lock-down version available.
- Flush in-ground unit.
- Painted bright red for easy visibility.
- Ideal to enforce one-way traffic.
- Dimensions: 6.5″H x 12.5″W x 72″L. Warning signs must be used with traffic spikes to warn drivers that a one-way traffic lane condition exist
- Speed bumps should always be used with traffic spikes. Speeds in excess of 5-MPH over the spikes can cause tire damage.
Surface Mount Traffic Spikes
- Spikes sections available in 3-foot sections.
- End caps provide a smooth end to the spike section.
- Torsion springs.
- Lock-down standard.
- Surface mount unit.
- 1/4-inch diamond plate painted bright yellow for easy visibility.
- 3-inch rise provides a built-in speed bump.
- Dimensions: 3″H x 31″W x 36″L. Warning signs must be used with traffic spikes to warn drivers that a one-way traffic lane condition exist
- Speed bumps should always be used with traffic spikes. Speeds in excess of 5-MPH over the spikes can cause tire damage.
Speed Bumps
- Speed bumps are constructed from solid composite material.
- Speed bumps can be easily removed and re-installed.
- Painted bright yellow for easy visibility.
- Designed for installation on concrete surfaces only.
- Dimensions: 2″H x 11.5″W x 72″L.
